WC30i-TZ Wireless Totalizer Data Sheet

Rugged, Simple, Flexible

FreeWave’s WC30i-TZ Wireless Totalizer delivers an intrinsically safe totalizer solution
for industry-standard turbine meters. It is easily and quickly installed and deployed at a
low price point.

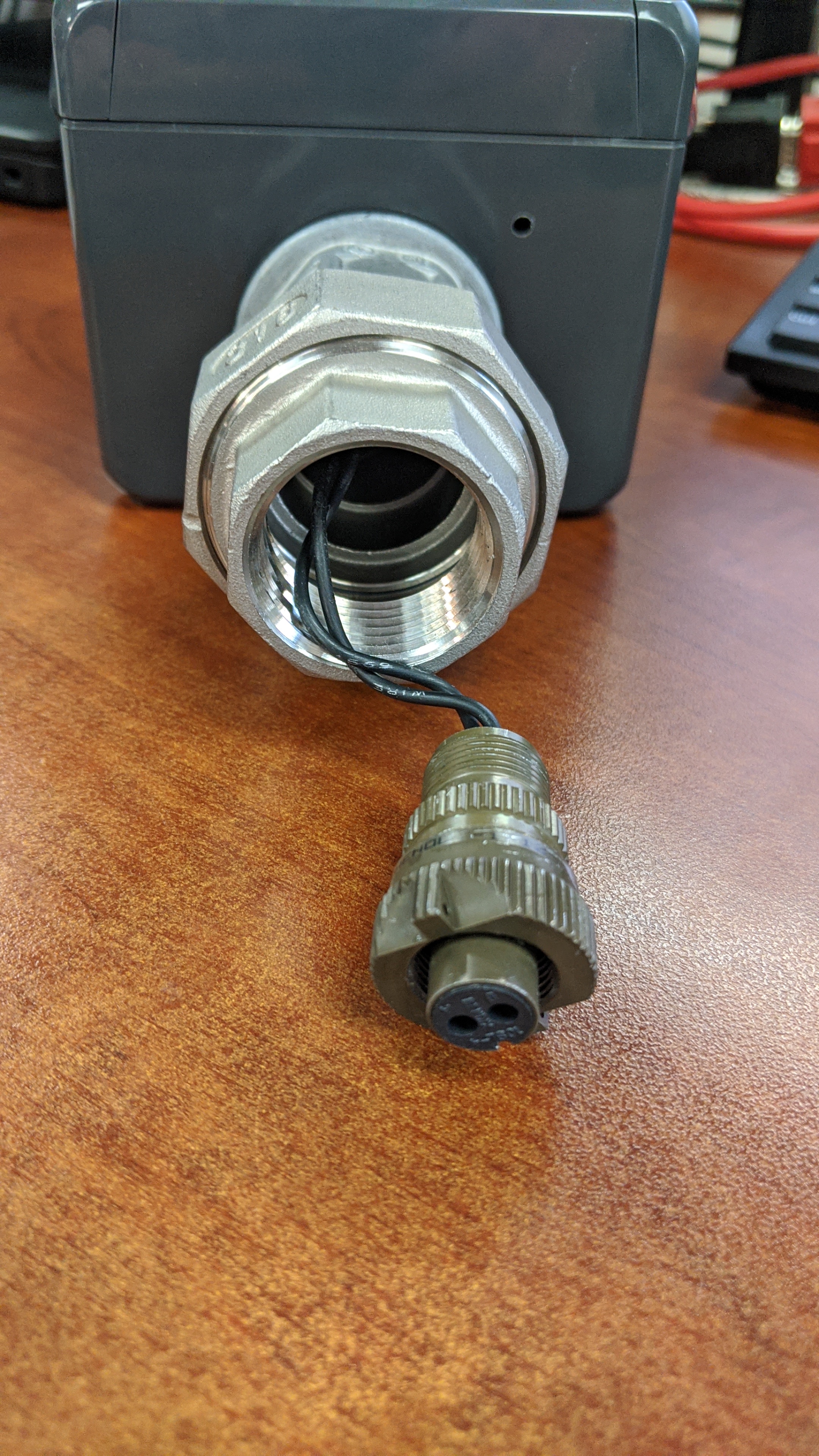

The WC30i-TZ Wireless Totalizer connects to industry-standard turbine meters and wirelessly connects to the WC45i Gateway. It features a settable contract hour with a Real Time Clock (RTC) and battery backup. The LED display shows flow rate and totalized readings.

Together with the WC45i Gateway, the WaveContact system is easily and quickly deployed to implement
industrial automation where wired installations would be cost prohibitive. The WaveContact System has been designed for deployment in Class I, Division 1 locations.

Key Features

• Compatible with standard turbine meter inductive pickups

• Local display with flow rate, totalizer, and diagnostics

• Provides grand total, yesterday’s total, and today’s total to individual Modbus registers
  30-day built-in local data historian / backup storage

• Wireless data interface to standard

• WC45i-Gateway via robust 900 MHz protocol

• Configurable contract hour with real-time clock and battery backup

• Configurable K factor

• Up to 10-year battery life

• Up to 0.8 km (0.5 miles) range

• Weathertight rugged enclosure for outdoor operation

• Easy to install and maintain

• Class I, Division 1, intrinsically safe

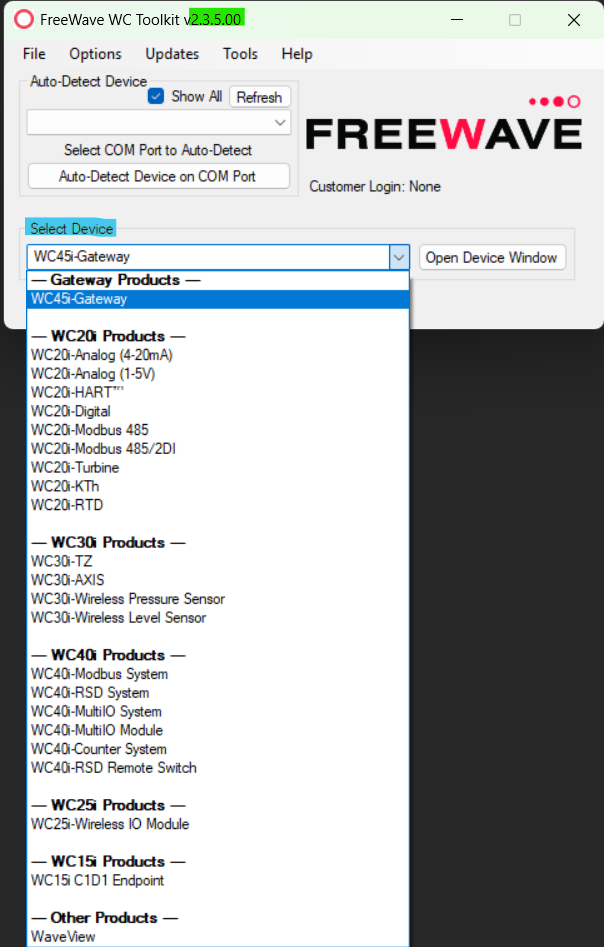

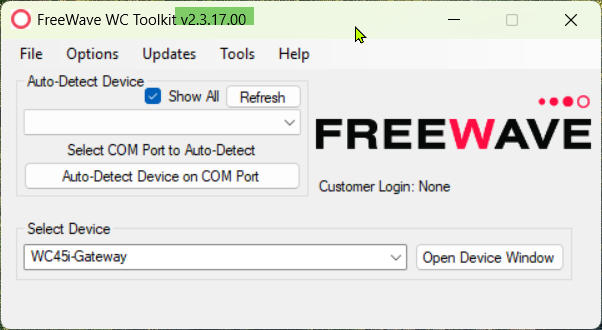

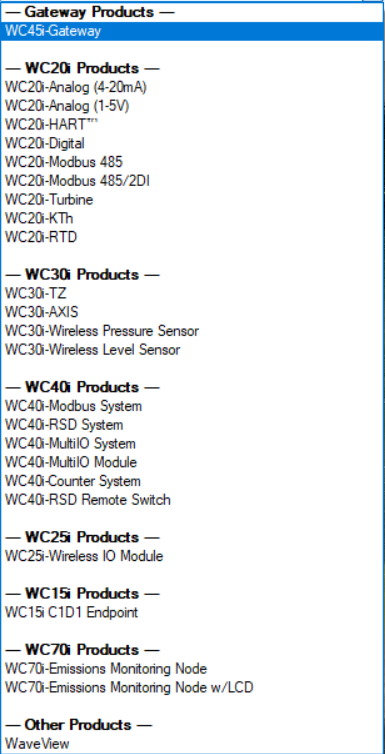

Download WC Toolkit

PDF Documents for the WC30i Totalizer Series:
