WC25i Wireless IO Module Data Sheet

Rugged, Simple, Flexible

The WC25i Wireless IO Module integrates multiple points of mixed IO into a WaveContact network using a single piece of equipment. The WC25i is used in wire replacement or standard endpoint modes.
The modules are rugged, DIN rail mounted, and designed for ease of use.

Together with the WC45i Gateway, WC20i Modular Endpoints and other WaveContact nodes can be combined to form a wireless IO network that is typically quicker to deploy, less expensive, and more reliable than wired installations.

Wire Replacement Mode
The wire replacement mode of operation replicates analog and digital signals across the wireless link between a pair of Wireless IO Modules. It is ideal for standalone valve control and simple retrofit applications.

Standard Endpoint Mode
The WC25i operates as an endpoint in a WaveContact system and sends the data (via the WaveContact
wireless mesh network) to a WC45i Gateway where the data is available via a Modbus RTU or Modbus-TCP interface. It supports Modbus writes to control the analog and relay outputs.

Key Features

• 4 Analog Inputs (0 to 20 mA or 0 to 5 V)

• 4 Analog Outputs (0 to 20 mA or 0 to 5 V)

• 2 Digital Inputs

• 2 Relay Outputs (1 DPDT, 1 SPST)

• Acts as a repeater for other WaveContact wireless devices

• Wide Range DC Power Input (10 to 30 VDC)

• Low Power Consumption

• DIN Rail Mount with pluggable screw terminal blocks

• Status LEDs

• Class I, Division 2

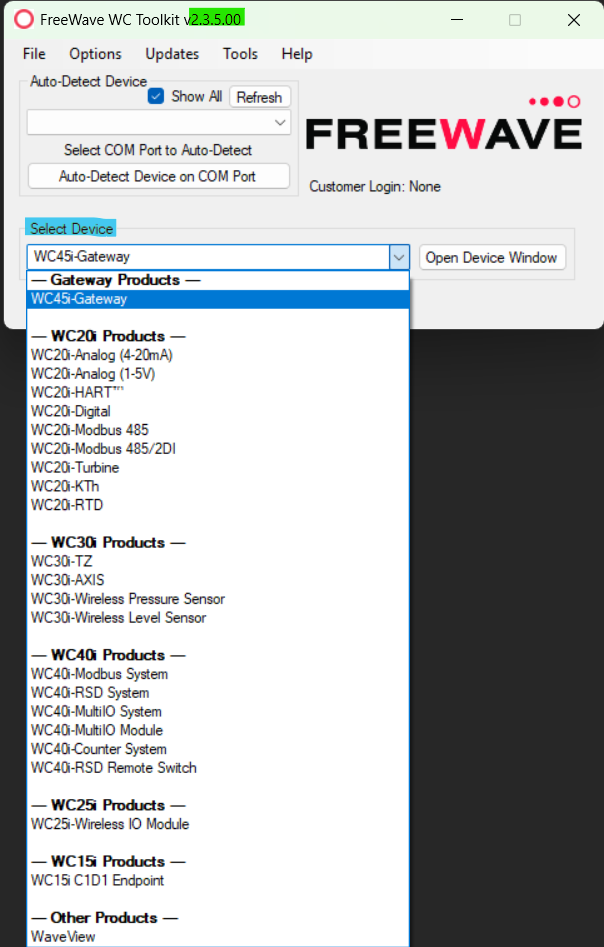

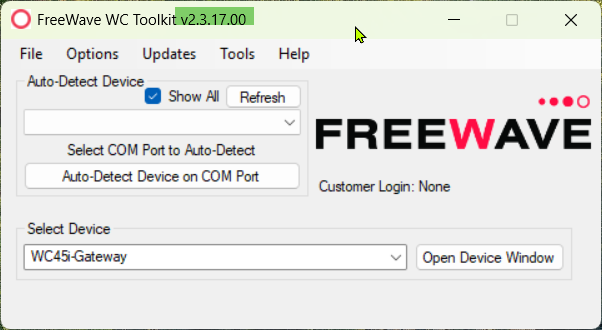

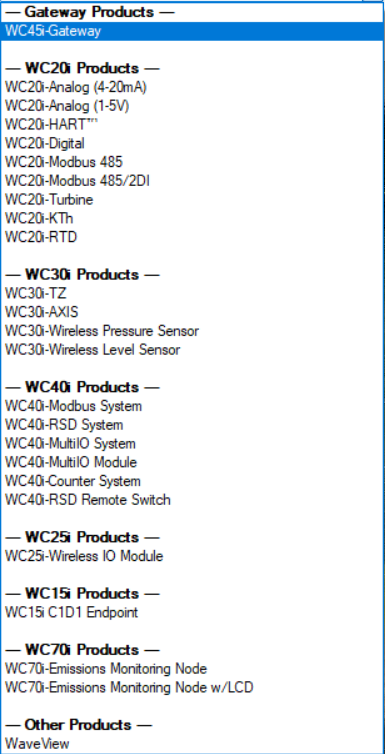

Download WC Toolkit
